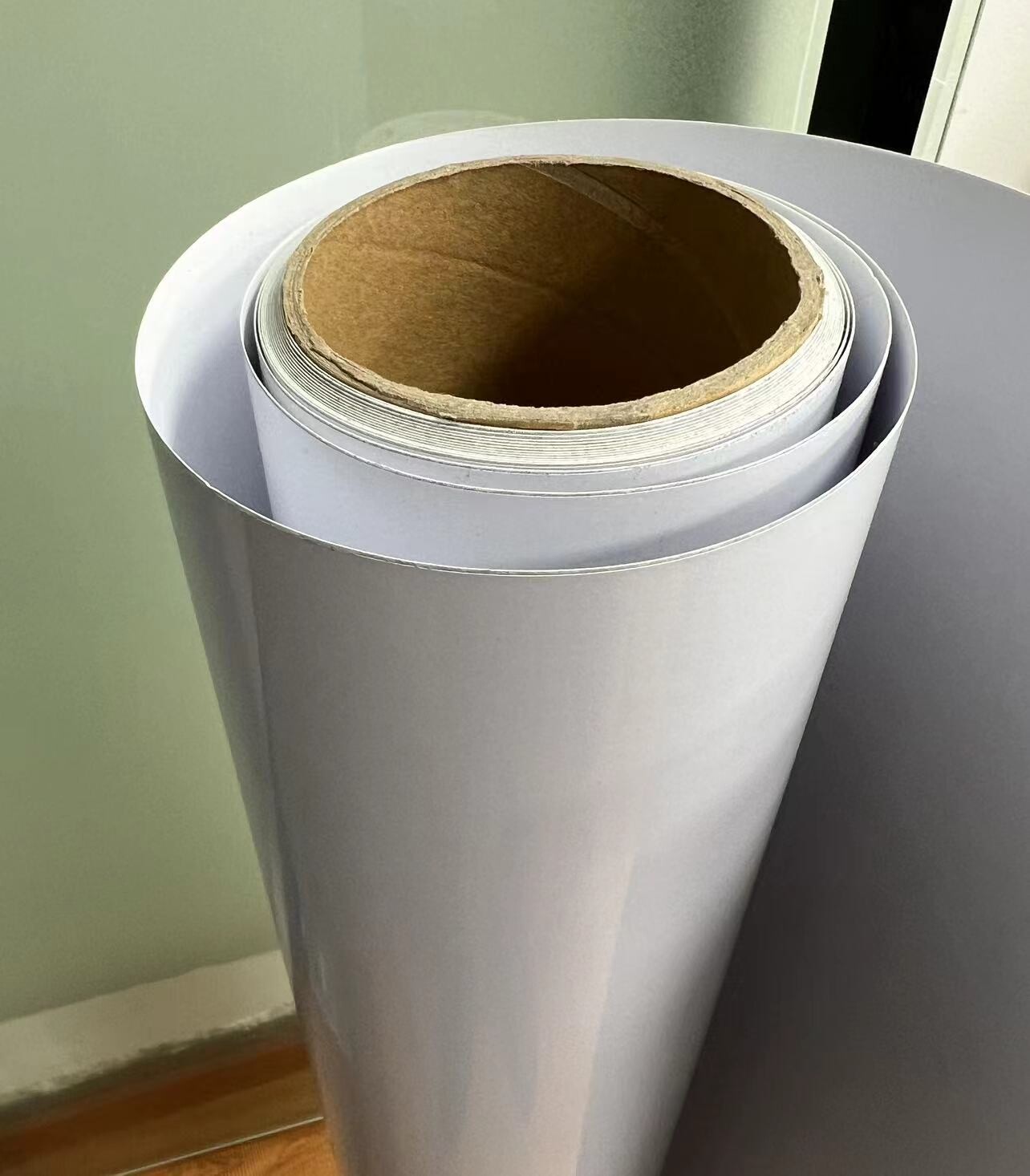

Translucent backlit self adhesive vinyl

Product advantages and uses:

Art.NO.: RH-6218

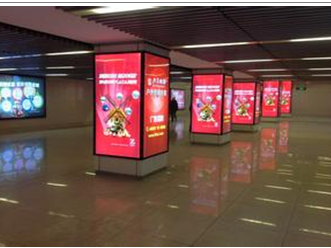

ideal for light box advertisement .

Art.NO.: RH-6218


Description

Film:  100 micron; glossy translucent PVC film

AdhesiveClear adhesive

Liner 140gsm one side PEK liner

Width 1.27/1.37/1.52m,  length roll: 50M

Features

1.  High performance film, stable ink absorption, bright colors, vivid images.

2.  It can be applied on the light box

3.  Stable glue performance, easy application to a wide variety of substrates.

Applications

1. Applicable to light box

2. Suitable for various solvent ink, Eco-solvent ink and UV ink

Technical Data

Testing condition: Indoor temperature 23±2°C;Relative humidity 50±5%;Use aluminum, glass, steel plate as the base material for testing.

Test Items

Units

Test method

Average value

Thickness PVC

Weight-Liner

Weight -finished product

Gloss Rate 60°

Initial Adhesion

24h, 180°peel

Dimensional stability MD

Dimensional stability CD

Tensile strength MD

Tensile strength CD

Construction Temperature

Applicable Temperature

Micron

g/m²

g/m²

%

N/25mm

N/25mm

mm

mm

N/25 mm

N/25 mm

°C

°C

GB/T6672-2001

GB4669-1995

GB4669-1995

GB8807-88

FTM 9

FTM 1

FTM 14

FTM 14

GB/T1040.1-2006

GB/T1040.1-2006

100±10

140±10

300±20

≥60

≥8

≥10

≤1.2

≤1.0

≥40

≥35

20±10°C

-20 ~ +70

Storage Condition

The products always need to be stored in the original packing and with the original protection materials preferably stored hermetically, no more than 6 layers if stored horizontally. Do not expose in direct sunlight or heat sources. Shelf life will be one year with temperature of 25°C±5°C and relative humidity of 50±15%.

Production and Application Environment

Production environment: temperature of 25±5°C, relative humidity of 50%±10%, clean dust-free environment without suspended matter; Please move the materials to the printing environment 24 hours before printing. Test prior to use and remain enough edge margins when printing.

Application environment: temperature of 20±10°C, relative humidity of 50±10%; Pasting on flat, smooth and clean surface without floating dust and shedding; It is necessary to take more than 2 hours for maintenance before laminating.

 Warranty Condition

1.  One year shelf life: stored in suitable conditions, preferably use within six months. Quality range is only for ink adsorption, other physical parameter is only for reference.

2.  One year prosecution period: from the product manufacture date, no-acceptance for overdue product.
